Mechanical anchors are honestly some of the most adaptable and trustworthy fastening options out there for construction and industrial jobs. These specialized fasteners provide immediate load capacity after installation and offer superior performance in concrete, masonry, and other solid base materials where traditional fastening methods fall short.
Let’s be real: picking the right anchor system can be the difference between a job well done and a headache you’ll remember for years. Mechanical anchors bring the strength and durability needed for everything from simple home repairs to massive commercial builds. The fact that they can handle high temperatures and take a load right away? That’s a huge plus.
We’re diving into the basics of mechanical anchor tech here—plus, we’ll talk about how choosing and installing them the right way makes all the difference. If you’re trying to match the right anchor to your project, or just want a few practical tips, you’re in the right place.
What Are Mechanical Anchors?
Mechanical anchors are fastening devices—think expansion or wedging mechanisms—that let you secure stuff to concrete, masonry, and other solid bases. They offer immediate load capacity and perform reliably across all sorts of construction scenarios.

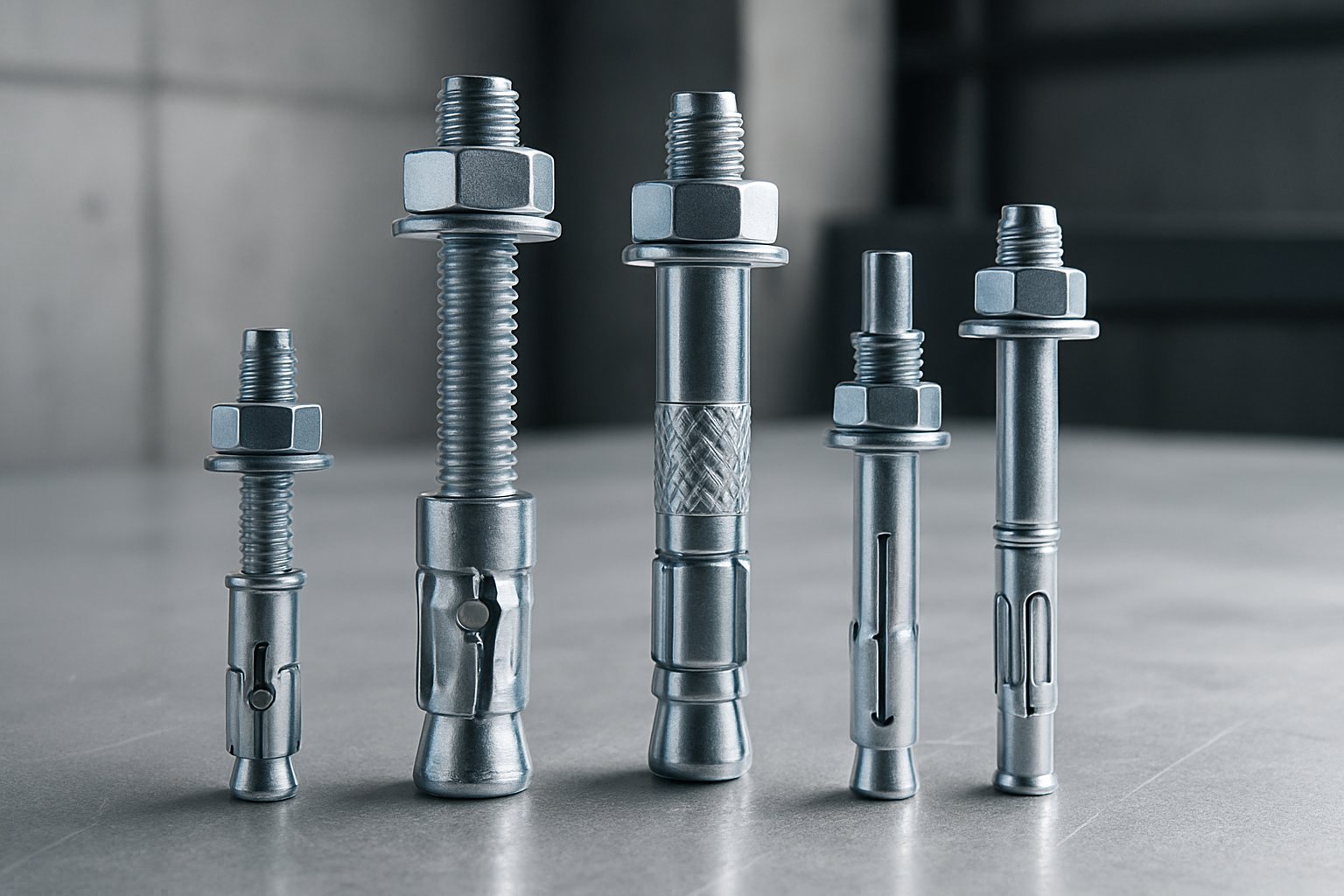

Types of Mechanical Anchors
There’s a handful of main types, each with its own quirks and best uses.
Wedge anchors are probably the ones you’ll see most for heavy-duty jobs. They’ve got a cone-shaped wedge that expands when you tighten it down.
Sleeve anchors use an internal cone to force a sleeve outward. These are handy for medium to heavy loads in both concrete and masonry.
Drop-in anchors need a special tool to set before you add the bolt. If you need a flush surface for a threaded rod, these are your go-to.
| Anchor Type | Best Use | Load Capacity |
|---|---|---|
| Wedge | Heavy structural loads | High |
| Sleeve | General purpose | Medium-High |
| Drop-in | Threaded connections | Medium |
| Toggle | Hollow materials | Light-Medium |
Toggle bolts are designed for hollow stuff like drywall—the wings pop open after you push them through.
Expansion shields use a tapered plug to expand the shield. These are more for lighter loads in solid materials.
How Mechanical Anchors Work
The magic happens through expansion or mechanical interference inside the base material.
When you tighten the anchor bolt or nut, internal parts get pulled together, forcing the anchor body to expand out against the hole walls.
Wedge mechanisms pull a tapered cone into a sleeve or clip, wedging the anchor tight against the concrete.
Sleeve expansion works by pushing an internal cone through the anchor body, making the sleeve stretch outward as it gets fatter toward the head.
You want that anchor making full contact with the hole walls for max holding power. Load gets transferred through both friction and bearing pressure.
Installation depth is a big deal—generally, the deeper you go, the more holding strength you get.
Temperature swings? Not really a problem. Steel anchors and concrete expand at similar rates, so there’s not much to worry about there.
Advantages of Mechanical Anchors
- Fast installation is a big win. Drill the hole, pop in the anchor, and you’re good to go in minutes.
- Temperature resistance is solid, too. Where adhesives might give up in the heat, these guys keep holding.
- Removability is another perk. Most mechanical anchors can be pulled out with minimal damage, which is great for temporary setups.
- Vibration resistance means they’re up for jobs where things move or shake a lot—they stand up to repeated stress cycles.
- Material compatibility is broad: concrete, brick, block, stone—you can use most anchor types in all of them.
- Cost effectiveness comes from the simple install—no mixing, no waiting, no weird environmental needs.
- Quality control is pretty straightforward. You can usually eyeball the install, check expansion, or measure torque to confirm.
- Immediate testing is possible, so you can verify load right after install—super useful for structural connections.
Application and Performance in Concrete
Mechanical anchors behave a bit differently in concrete depending on the condition of the concrete and the anchor you pick. The big factors are whether the concrete is cracked or not, and how well the anchor design fits the base material.
Using Mechanical Anchors in Cracked Concrete
You’ve got to think about the state of the concrete before picking an anchor. Performance categories from ACI 318 spell out if an anchor is okay for just uncracked concrete, or both cracked and uncracked.
Anchors rated for cracked concrete go through tougher tests—they have to keep holding even if a crack runs right through where they’re set.
Undercut anchors are the top performers for cracked concrete. They actually cut into the concrete to form a mechanical lock that holds up even as cracks form.
Standard expansion anchors can lose some holding power in cracked concrete, since the crack can mess with how the expansion works.
Suitability for Concrete Screws
Concrete screws are a bit different from expansion anchors. They’re best for lighter-duty jobs, especially when you might want to take them out later.
These fasteners bite right into pre-drilled holes—the threads cut into the concrete, so you don’t need expansion.
Installation depth is usually 1.5 to 2 times the screw diameter for best results. Going deeper can help, but only up to what the manufacturer recommends.
Concrete screws are ideal for uncracked concrete in the 2,500 to 6,000 psi range. If the concrete’s too hard, installation gets tricky; too soft, and the threads don’t hold.
Material Compatibility and Base Substrates
Picking the right anchor means checking out the base material. Concrete compressive strength matters a lot for anchor capacity and how you install.
| Concrete Strength | Suitable Anchor Types | Performance Notes |
|---|---|---|
| 2,500-4,000 psi | Standard expansion, concrete screws | Good for most applications |
| 4,000-6,000 psi | All mechanical types | Optimal performance range |
| 6,000+ psi | Heavy-duty expansion, undercut | May require special installation |
Aggregate size and type can make a difference, too. Hard aggregate can deflect your drill bits and soft aggregate might not give the anchor enough to grab onto.
For masonry, you need a different approach. Hollow or solid units and where the mortar joints land all come into play when picking anchors for brick or block.
Mechanical Anchor Design and Installation
Designing with mechanical anchors isn’t just about grabbing whatever’s on the shelf. You’ve got to think about the base material, what kind of loads you’re dealing with, and the environment. And let’s not forget that how you install them—right hole, right depth, right anchor—can make or break the job.
Key Considerations for Anchor Design
You start with base material compatibility. Not every anchor works with every material—concrete, masonry, brick, stone—they all have their favorites.
Load calculations are next—figure out the anchor size and spacing you’ll need. Both tensile and shear forces should be considered.
A few design factors to keep in mind:
- Concrete strength and age
- Edge distances and spacing
- Environmental exposure
- Whether loads are dynamic or static
Anchor depth and embedment length are biggies for holding power. Deeper usually means stronger, but you’ll need a longer anchor.
If you’re working in tough environments, like ones with moisture or chemicals, stainless or galvanized anchors are the safer bet.
Eurocode 2 (EN 1992-4) gives you a standardized way to calculate what you need, considering concrete type, resistance, and application.
Step-By-Step Anchor Installation Process
Before you start, double-check that you’ve got the right anchor for the job and the material. Each anchor type has its own installation procedure.
Installation steps:
- Mark your anchor spots carefully
- Drill to the right diameter and depth
- Clean out every bit of debris
- Insert anchor per manufacturer’s instructions
- Apply the specified torque or expansion force
Drilling accuracy is crucial—wrong size or depth can ruin the anchor’s performance.
Clean holes matter more than you’d think. Dust or debris left in there can kill your holding power. Use compressed air or a vacuum if you can.
Torque specs are different for every anchor. Too little, and it won’t hold; too much, and you might break something.
Expansion anchors need just the right amount of force to set. Through-bolts might need a different approach than standard anchors.
Compliance, Certification, and Quality Assurance
Building codes set out what’s required for anchors in structural jobs. You’ll often need engineered calcs and approved systems.
Compliance usually means:
- Load test documentation
- Material certs
- Install verification steps
- Regular inspections
Code-approved anchors come with lab certifications, so you know they’ve been tested under standard conditions.
Quality checks can include pull tests or torque checks, and you’ll want to keep records for code compliance.
Pro installers know the specs and the local codes. Training helps keep installs consistent and up to snuff.
Load transfer mechanisms matter for long-term reliability. Anchors that bear loads directly often do better over time than those relying just on friction.
Selecting the Right Mechanical Anchor for Your Project
Matching anchor types to your job—and knowing what really matters for performance—can make or break the project. You have to weigh base material, loads, and how you’ll be installing the anchors.
Choosing Anchor Types for Specific Applications
- Wedge anchors are the go-to for high loads in solid concrete. The wedge action grips the concrete walls tight.
- Drop-in anchors are perfect when you need a flush finish—think overhead installs or when you want everything nice and clean-looking.
- Sleeve anchors are pretty versatile, working in concrete, masonry, or even hollow blocks. The expansion mechanism handles both solid and hollow bases.
- Stud anchors shine when you need precise placement and high pull-out resistance. The threaded rod lets you adjust as you go.
- For cast-in-place jobs, the anchors go in during the concrete pour. These are the heavy hitters for load, but you’ve got to plan ahead.
- Screw anchors are for lighter jobs and let you remove them easily. They just thread into pre-drilled holes—no expansion needed.
Factors Impacting Anchor Selection
- Base material strength can’t be ignored. Make sure your concrete is at least 2,500 psi for most mechanical anchors.
- Load requirements drive anchor size and type. Tension, shear, or combo loads all need their own approach.
- Environmental conditions matter for material choice. Corrosive spots need stainless or galvanized anchors.
- Installation accessibility can steer you toward certain anchors. Drop-ins are great for overhead; tight spaces might mean special tools.
- Edge distances and spacing are crucial—stick to manufacturer recommendations to avoid concrete blowouts.
- Installation torque isn’t the same for every anchor. The right torque ensures the anchor expands properly without overdoing it.
